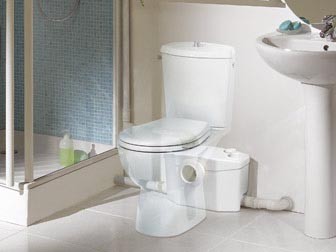

Saniflo Sanipro will take the waste from a WC, shower cubicle and wash basin and pump it quickly and quietly through 22mm small bore pipework to a remote soil stack or sewer. Sanipro has received the 'silent' makeover and been fitted with an integrated carbon filter. Sanipro is easy and economical to install, works with any style of sanitaryware and can be concealed behind a demountable panel to give access if required.
Motor: induction motor (no carbon brushes or gears to wear out). Tested over 30,000 cycles.
Watts (consumption): 400w
Electrical supply: 220-240V 50Hz
Flow rate at max head l/min: 55
Discharge: (vertical height is measured from floor level) horizontally to 100 metres or vertically to 5 metres
Gravity fall on ‘horizontal’ installations: 1/200
Discharge Pipe Diameter: 22mm
Construction Materials: Polypropylene, C.R.P., stainless steel, Neoprene
Type of WC Pan: (not included)
Short spigot 100mm HO outlet (BS EN 33/37)
Motor RPM: 2800 RPM
Normal Running Time WC:
10 - 20 secs approx or as required, to discharge shower etc

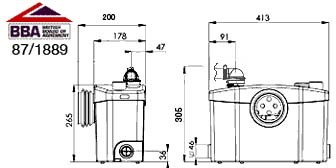

Dimensions:
413W x 305 O/H x 200D (requires 210mm behind spigot)
Note: Designed to fit BS EN 33/37 WC pans. As close coupled cistern dimensions vary, it may be necessary, with certain designs, to utilise a spacer between cistern and wall
Sanitaryware not included.
Product Code: SF-SANIPRO
Saniflo macerator pumping systems enable you to add facilities almost anywhere. They're easy, quick and economic to install and you can add a cloakroom or complete bathroom - even a kitchen or utility room!
Saniflo macerator come with a 2 year manufacturers guarantee for domestic use.
For a product brochure, and technical details of these products visit www.saniflo.co.uk
